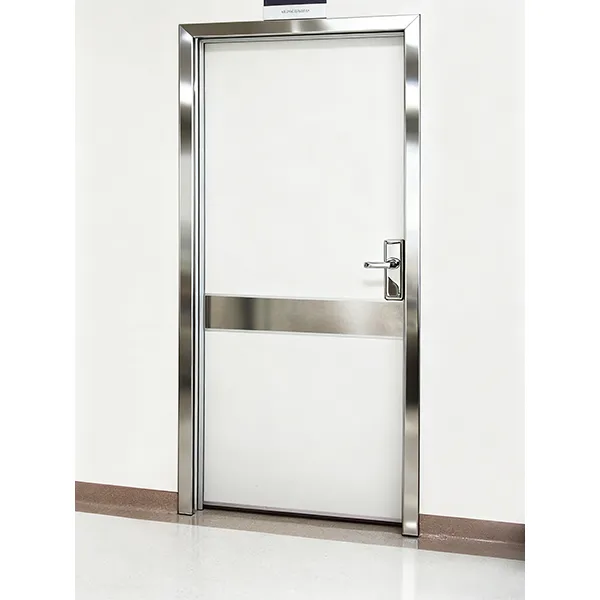

Swing Ward Door Treatment Room Door
Integrated door frame with 45° connections. Three-sided interlocking door panel ensures strength and flat appearance. External cover plate with built-in seal provides sound insulation. Double-tempered glass window combines aesthetics with easy cleaning. Eco-friendly galvanized steel with polyester coating offers stain resistance, thermal and acoustic insulation, moisture protection, and easy maintenance.
Swing Ward Door Treatment Room Door Description
The door frame is a formed, integrated structure, and it is connected at an angle of 45°. The door panel
material is of a three-sided interlocking structure, which fully guarantees the bonding strength of the door
leaf while ensuring a smooth and straight appearance of the door leaf. The door leaf has a structure of a
single-sided externally installed cover joint plate, and the embedded airtight material fully realizes sound
insulation and sealing while ensuring the overall effect of the door leaf. The double-layer tempered
glass window not only achieves a beautiful appearance but also facilitates daily hygiene cleaning and
maintenance. The material is environmentally friendly galvanized steel sheet, with a surface polyester
coating, which is stain-resistant, green, and environmentally friendly. It has the characteristics of heat
preservation, sound insulation, moisture resistance, and easy cleaning.
Swing Ward Door/Treatment Room Door Parameter
| Thickness of the Steel Plate for the Door Frame | 1.5mm |
| Thickness of the Steel Plate for the Door Leaf | 0.8mm |
| Door Leaf Thickness | 40~50mm |
| Door Leaf Material | 0.8mm Galvanized Steel Sheet |
| Door Frame Material | 1.2/1.5mm Galvanized Steel Sheet |
| Surface Treatment | Electrostatic Powder Coating / PVC Laminating Process |
| Maximum Opening Angle | 180° |
| Sound Insulation Performance | Rw=33dB Three Grade( GB/TB485-2008) |
