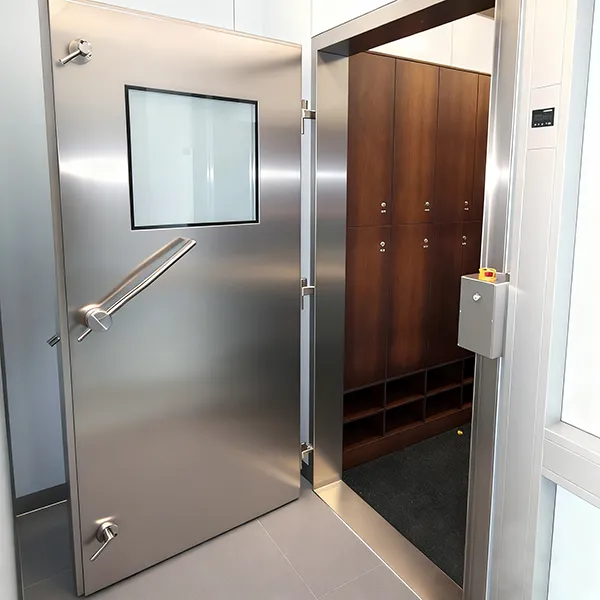

BSL-2/BSL-3 LAB Air-Tight Door
Lab doors feature an integrated design with wrapped right-angle frames and a sandwich-structured panel, including a solid anti-collision core. High-strength, airtight hardware provides chemical, heat, and cleaning agent resistance.
BSL-2/BSL-3 LAB Air-Tight Door Description
For the unique integrated structural design of the laboratory-specific doors, the door frames adopt specialized wrapped right-angle frames, and the door panels adopt a unique sandwich structure design, with high-strength anti-collision solid cores in the middle, and various surface materials attached to the outer layer using a special process. The specialized hardware configuration features high strength and high airtightness, and can be cleaned with conventional laboratory cleaning agents, with good chemical and heat resistance.
Parameter of BSL-2/BSL-3 LAB Air-Tight Door
| Parameter | Details |
| Door Leaf Thickness | 50mm |
| Door Leaf Material | 1mm Brushed Stainless Steel Plate |
| Door Frame Material | 1.5mm Brushed Stainless Steel Plate |
| Opening Angle | 0° – 110° |
| Working Temperature Range | -40℃ – +75℃ |
| Air-Tight Method | Mechanical Compression Type, Double-Layer Sealing |
| Gas Grade | Meets the requirements of Grade Three and above in “Technical Code for Architectural Design of Biosafety Laboratories” GB50346 – 2011 |
